Specifications:

Brand Canon
Focal Length 5.2mm
Maximum Aperture f/2.8
Minimum Aperture f/16
Lens Mount Canon RF
Lens Format Coverage Full-Frame
Angle of View 190°
Minimum Focus Distance 7.9″ / 200.7 mm
Maximum Magnification 0.03x
Optical Design 12 Elements in 10 Groups
Diaphragm Blades 7
Focus Type Manual Focus
Image Stabilization No
Filter Size Gel Filter (Rear)
Dimensions (ø x L) 4.8 x 2.1″ / 12.2 x 5.3 cm
Weight 12.4 oz / 352 g
Package Weight 650 g
Box Dimensions (LxWxH) 9.3 x 6.7 x 6″

Features:

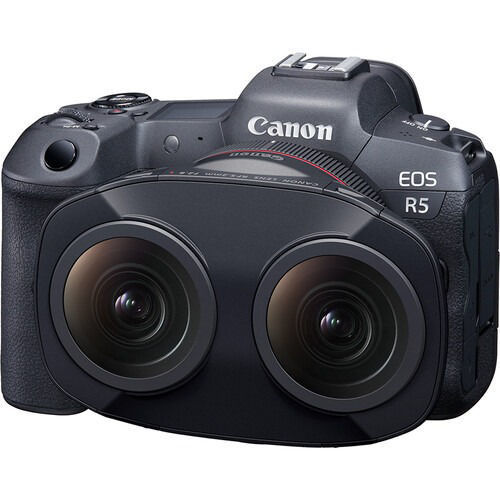

Designed for use with the Canon EOS R5 Mirrorless Digital Camera, this lens gives you the ability to create an immersive 3D experience. When captured imagery is viewed on compatible head mount displays such as the Oculus Quest 2 and more, a viewer can feel like they are a part of the story that you create.

With stereoscopic 3D 180° VR, your audience can see life-like depth and can move their head to look around the viewing environment. The lens features a beautifully engineered and optimized folded optical design, with separate left and right optical systems. This enables you to capture stereoscopic 3D imagery with a 180° field of view to a single full-frame image sensor.

Pairing this one lens to an EOS R5 camera provides you with the ability to deliver a single file. This lets you create a powerful and convenient solution compared to traditional VR systems that capture a 3D scene with two separate fisheye lenses, recorded to two separate cameras, which write two separate files.

This saves you time and effort behind the camera and in post-production by helping to solve issues such as multi-camera positioning, multi-lens syncing, image stitching, audio syncing, encoding, and more.

To help improve the user experience when shooting with the RF 5.2mm f/2.8 L Dual Fisheye 3D VR lens, special features have been added to the firmware to optimize VR shooting. This firmware provides metadata information for the software to convert the image from fisheye to equirectangular.

One of the features enabled with the use of this lens is a Magic Window on-screen overlay, accessed by tapping the INFO button that assists in framing the central resting position, which shows an approximate field of view in the composition.

The user can magnify at 6x and 15x magnification and also use MF Peaking while magnified. Additionally, you can swap between the left and right lenses with a simple tap of the INFO button while magnified, which is incredibly useful when manually focusing the lens.
